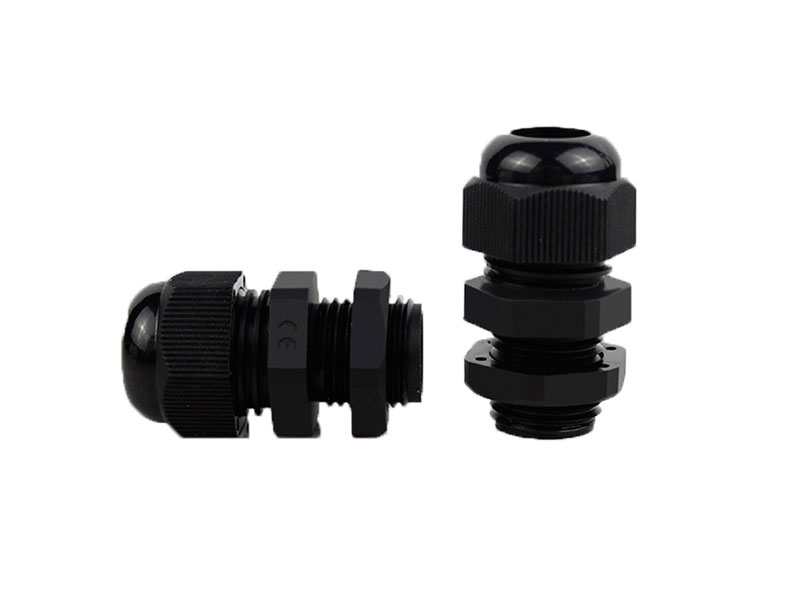

The thread length of the extended cable gland, a kind of metric cable connectors, is 15-20mm, which is suitable for relatively thick distribution boxes or electrical panels. When the length of the normal size cable glands is not long enough to fit the lock nut, in this case, a long cable gland is needed. We could solve this problem by customizing length of the cable gland long thread.
The long cable gland is made of PA66 material and can be waterproof and dustproof.
If you are looking for a reliable supplier of metric cable connectors, Saichuang is your ideal choice. SAICHUANG, as a professional manufacturer of cable gland long thread, can provide long cable glands of different sizes. You can drop down and find long thread cable gland size chart below.
| Product | METRIC PLASTIC CABLE GLAND LONG THREAD |
| Category | Plastic Cable Gland |
| Thread | METRIC Thread |
| Connector Type | Installable Straight |
| Locking System/ Mating Style | Screw |
| Material | Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR). |
| Working termperature: | -40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
| Characteristics | Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, alcohol,grease and general solvent. |
| IP Rating | IPX7 |
| Standard | UL94 V2 |
| Additional Description | With washer and lock nut |
| Color | Gray, black cable glands are usually in stock . Other colors can be customized on request |
| Model | Thread Size | Cable Range (mm) | Thread OD L2(mm) | Thread Length L1 (mm) | Spanner Size A & E (mm) | Qty/bag |
| M12-L | M12xl.5 | 3 ~ 6.5 | 12 | 15 | 18/16 | 100 |
| M12-L | M12xl,5 | 2-5 | 12 | 15 | 18/16 | 100 |
| M16-L | M16xl.5 | 4 ~ 8 | 16 | 15 | 22/19 | 100 |
| M16-L | M16x 1.5 | 2 ~ 6 | 16 | 15 | 22/19 | 100 |
| M18-L | M18xl.5 | 5 ~ 10 | 18 | 15 | 24/22 | 100 |
| M18-L | M18xl,5 | 3 ~ 7 | 18 | 15 | 24/22 | 100 |
| M20-L | M20xl.5 | 6-11 | 20 | 15 | 27/24 | 100 |
| M20-L | M20xl.5 | 5 ~ 9 | 20 | 15 | 27/24 | 100 |
| M22-L | M22xl.5 | 10 ~ 13 | 22 | 15 | 30/27 | 100 |
| M22-L | M22xl.5 | 7-12 | 22 | 15 | 30/27 | 100 |
| M24-L | M24xl.5 | 12 ~ 15 | 24 | 15 | 30/28 | 100 |
| M24-L | M24xl.5 | 10 ~ 12 | 24 | 15 | 30/28 | 100 |
| M25-L | M25xl.5 | 12 ~ 15 | 25 | 15 | 31/28 | 100 |
| M25-L | M25xl.5 | 10 ~ 12 | 25 | 15 | 31/28 | 100 |
| M27-L | M27xl.5 | 13 ~ 18 | 27 | 15 | 35/33 | 100 |
| M27-L | M27xl.5 | 9 ~ 16 | 27 | 15 | 35/33 | 100 |
| M28-L | M28xl.5 | 13 ~ 18 | 28 | 15 | 35/33 | 100 |
| M28-L | M28xl,5 | 9 ~ 16 | 28 | 15 | 35/33 | 100 |
| M30-L | M30xl.5 | 16 ~ 21 | 30 | 15 | 37/35 | 50 |
| M30-L | M30xl.5 | 13 ~ 18 | 30 | 15 | 37/35 | 50 |
| M32-L | M32xl.5 | 16 ~ 21 | 32 | 15 | 38/35 | 50 |
| M32-L | M32xl,5 | 13 ~ 18 | 32 | 15 | 38/35 | 50 |
| M36-L | M36xl.5 | 18 ~ 25 | 36 | 15 | 45/42 | 50 |
| M36-L | M36xl.5 | 13 ~ 20 | 36 | 15 | 45/42 | 50 |
| M40-L | M40xl.5 | 22 ~ 32 | 40 | 18 | 52/52 | 20 |
| M40-L | M40xl.5 | 20 ~ 26 | 40 | 18 | 52/52 | 20 |
| M46-L | M46xl.5 | 22 ~ 32 | 46 | 18 | 58/52 | 20 |
| M46-L | M46xl,5 | 20 ~ 26 | 46 | 18 | 58/52 | 20 |
| M50-L | M50xl.5 | 32 ~ 38 | 50 | 20 | 62/58 | 20 |
| M50-L | M50xl.5 | 25 ~ 31 | 50 | 20 | 62/58 | 20 |
| M58-L | M58xl.5 | 37-44 | 58 | 20 | 70/64 | 20 |
| M58-L | M58xl.5 | 29 ~ 35 | 58 | 20 | 70/64 | 20 |
| M63-L | M63xl.5 | 37-44 | 63 | 20 | 72/64 | 20 |
| M63-L | M63xl.5 | 29 ~ 35 | 63 | 20 | 72/64 | 20 |
A long thread cable gland is an essential component in electronic and electrical systems, providing strain relief and secure connections for cables and wires. These cable glands are commonly used in applications where cables need to be attached and secured to equipment or machinery, while also providing protection against environmental factors.
Long thread cable glands are a type of metric cable connector that provides a secure and reliable connection for cables with a longer length. These cable glands feature a long thread that allows for a secure attachment to the equipment or machinery, while also providing ample space for the cable to be inserted and secured.
One of the main benefits of long thread cable glands is their ability to provide strain relief for long cables. As cables get longer, they are more prone to damage from bending, pulling, and twisting, which can lead to costly downtime and repairs. The long thread design of these cable glands helps to prevent damage to the cable by providing a secure and stable connection.
Another benefit of long thread cable glands is their ability to provide protection against environmental factors. These cable glands are designed to be weatherproof and can withstand exposure to moisture, dust, and other environmental factors. This makes them ideal for outdoor and industrial applications where equipment is exposed to harsh conditions.
Long thread cable glands come in a variety of sizes and configurations to accommodate different cable diameters and types. They can be made from a range of materials, including plastic, brass, and stainless steel, depending on the application and environment.
A long thread cable gland is a type of metric strain relief connector used in various applications to provide a secure and reliable connection between a cable and an enclosure. These connectors are designed to fit metric cable connectors and are ideal for applications that require a strong and durable connection for long cables.
The long cable gland provides strain relief to prevent cables from becoming damaged due to tension or pulling. They are commonly used in industrial applications where heavy machinery or equipment is involved. The cable gland also helps to maintain the integrity of the enclosure, preventing the ingress of dust and other particles, and providing protection against moisture and other environmental factors.
One of the primary advantages of a long thread cable gland is its versatility. It can be used with a wide range of cables and enclosures, making it a popular choice in the electrical and mechanical industries. Additionally, they are easy to install and provide a secure, tamper-resistant connection.
When selecting a long cable gland, it is essential to choose the appropriate size for the cable being used. This will ensure that the connection is strong and secure, and that the cable is adequately protected against environmental factors. It is also important to choose a high-quality cable gland from a reputable supplier to ensure that it meets industry standards and is built to last.
This long-thread cable gland is made of PA material. The surface is shiny,smooth and it has high toughness, strong pressure resistance, anti-aging, firm surface and long service life.
The lock nuts are strictly manufactured. The surface is neat and smooth, no burrs, and the threads are neat and clear, which ensures the tightness and fixability of the cable gland.
The thread length of the extended cable gland is longer than that of the conventional type, so that it can be installed on a thicker panel.
The thread of the waterproof cable gland is clear, the sealing nut is strong and waterproof, and the insulation effect is good.
